Quartz Tubes & Quartz Rod

Being independent stockist's of Quartz Tubes & Fused Silica , we can provide you with material to suit your application and budget. We supply Quartz tubes from a single piece to large draws, from a few millimeters long up to 3 metres. Ask for further details when inquiring.

Material Available

Quartz Glass

  • Quartz Tubes -clear & opaque quartz from 1mm od - 250mm od

  • Opaque Quartz Tubes are mainly used in Infrared heating or furnace tube assembly. Used when diffusion of heat is critical

  • Quartz Rod - clear and opaque quartz

  • Quartz Capillary tubes

  • Twin/Triple/ Quadruple bore Quartz Tubes. Multi-bore quartz tubes in clear and opaque Quartz

Borosilicate Glass

  • Borosilicate Tubes

  • Borosilicate Rod

  • Borosilicate Capillary & micron capillary tubes - Redrawn glass to micron dimensions, used in fibre optics and precision instrumentation



Standard Quartz Tube Sizes

Ø OD mm Nominal ID mm Wall Thickness Tolerance +/- mm
2* 2.0 & 1.0 1.0 & 2.0 0.2 & 0.2
3* 2.0 & 1.0 1.0 & 2.0 0.2 & 0.2
4* 2.0 &1.4 1.0 & 1.3 0.2 & 0.2
5* 3.0 & 2.4 1.0 & 1.3 0.2 & 0.2
6* 4.0 & 3.4 1.0 & 1.3 0.2 & 0.2
7* 5.0 & 4.2 1.0 & 1.4 0.2 & 0.2
8 * 6.0 & 5.2 & 4.2 1.0 & 1.4 & 1.9 0.2 & 0.2 & 0.4
9 * 7.0 & 6.2 & 5.2 1.0 & 1.4 & 1.9 0.2 & 0.2 & 0.4
10 * 8.0 & 7.2 & 6.2 1.0 & 1.4 & 1.9 0.2 & 0.2 & 0.4
11 * 8.6 & 8.2 & 7.2 1.0 & 1.4 & 1.9 0.2 & 0.2 & 0.4
12 * 9.6 & 9.2 & 8.2 1.0 & 1.4 & 1.9 0.2 & 0.2 & 0.4
13 * 10.2 & 9.0 1.4 & 2.0 0.2 & 0.4
14 * 11.2 & 10.0 1.4 & 2.0 0.2 & 0.4
15 * 12.2 & 11.0 1.4 & 2.0 0.2 & 0.4
16 * 13.0 & 12.0 1.5 & 2.0 0.3 & 0.4
17 * 14.0 & 13.0 1.5 & 2.0 0.3 & 0.4
18 * 15.0 & 14.0 1.5 & 2.0 0.3 & 0.4
19 * 16.0 & 15.0 1.5 & 2.0 0.3 & 0.4
20 * 17.0 & 16.0 1.5 & 2.0 0.3 & 0.4
22 19.0 & 18.0 1.5 & 2.0 0.3 & 0.4
24 21.0 &19.6 1.5 & 2.0 0.3 & 0.4
26 22.8 & 21.6 1.6 & 2.2 0.3 & 0.4
28 24.8 & 23.6 1.6 & 2.2 0.3 & 0.4
30 26.8 & 25.6 1.6 & 2.2 0.3 & 0.4
32 28.6 & 27.6 1.7 & 2.2 0.3 & 0.4
34 30.6 & 29.6 1.7 & 2.2 0.3 & 0.4
35 32.5 & 31.5 1.7 & 2.2 0.3 & 0.4
36 32.5 & 31.5 1.7 & 2.2 0.3 & 0.4
38 34.5 & 33.2 1.7 & 2.2 0.3 & 0.4
40 36.4 & 35.2 1.8 & 2.4 0.3 & 0.4
42 38.4 & 37.2 1.8 & 2.4 0.3 & 0.4
44 40.5 & 39.2 1.8 & 2.4 0.3 & 0.4
46 42.5 & 41 1.8 & 2.4 0.3 & 0.4
48 44.5 & 43 1.8 & 2.4 0.3 & 0.4
50 46.5 &  45 1.8 & 2.6 0.3 & 0.4
55 51 & 50 1.9 & 2.5 ±0.7
60 56 & 54.5 2 & 2.8 ±1
65 61 &59.5 2 & 2.8 ±1
70 65.5 & 64 2.2 &3 ±1
75 70.5 & 69 2.2 &3 ±1
80 75 & 73.5 2.4 &3 ±1
85 80 & 78.5 2.5 & 3 ±1
90 85 & 83 2.5 & 3.5 ±1
95 90 & 88 2.5 & 3.5 ±1
100 94 & 92 3 ±1.5

* Rod Sizes Available



  Micron Capillary Tubing

  Capillary tubing can be drawn to your exact specifications and length

  Picture shows 350µm diameter x 200µm bore

Quartz Micron Capillary tubes





White Quartz Tube

White Quartz tube also known as Translucent Quartz  - Satin Quartz  Quartz blanc or Milky Quartz .

White Quartzis used, in general, for heat applications as it diffuses heat quickly

Commonly used for

  • Infrared heaters

  • Furnaces

  • Furnace Crucibles

  • Industrial Drying

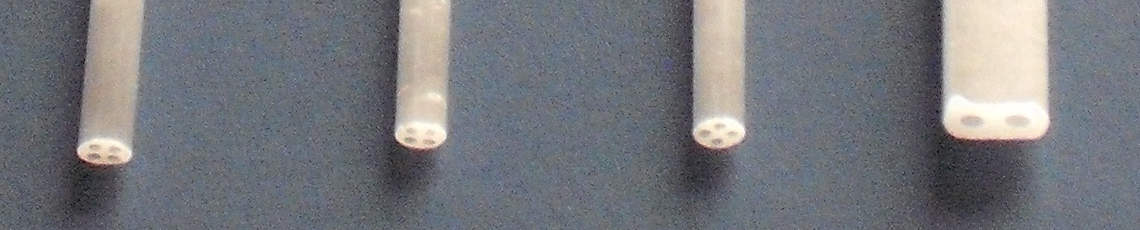

We stock and supply standard sizes along with twin bore and quadruple bore tubes

tube quartz, twin bore quartz tube, quadruple bore quartz tube, white quartz , quartz infrared heaters, quartz blanc
