White Quartz, Translucent Quartz, Satin Quartz, Milky Quartz. Combustion boats combustion trays furnace crucibles, crucibles, quartz beakers, quartz rectangular crucibles

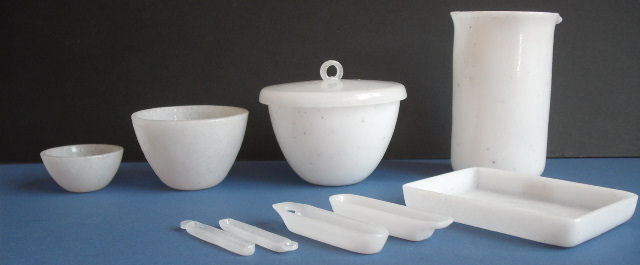

White Quartz

White Quartz otherwise known as Translucent, Satin or Milky Quartz

White Quartz is mainly used where high temperature application is necessary

White Quartz is used in Quartz infrared heaters to Quartz crucibles

Due to the nature of white quartz its has excellent thermal properties and is used for industrial drying, protection of thermocouples and pin sampling tubes.

Round Bottom Basins with Spout Transluent (Glazed)

white quartz basin

Catalogue Number	External Dimensions		Nom. Cap.(ml)
	Height H(mm)	Diameter D(mm)
TQ/BA20	23	55	20
TQ/BA45	27	75	45
TQ/BA70	33	87	70
TQ/BA85	36	94	85
TQ/BA100	38	100	100
TQ/BA200	47	113	200
TQ/BA400	62	142	400

Deep Form Basins with Spout Translucent (Glazed)

white quartz deep form basin

Catalogue Number	External Dimensions		Nom. Cap.(ml)
	Height H(mm)	Diameter D(mm)
TQ/DF/BA10	18	40	10
TQ/DF/BA15	25	50	15
TQ/DF/BA45	30	60	45
TQ/DF/BA90	45	80	90

Flat Form Basins with Spout Translucent (Glazed)

white quartz flat form basin

Catalogue Number	External Dimensions		Nom. Cap.(ml)
.	Height H(mm)	Diameter D(mm)
TQ/FF/BA20	15	69	20
TQ/FF/BA25	15	79	25
TQ/FF/BA 75	20	101	75
TQ/FF/BA125	23	131	125

Crucible Low Form and LID Translucent(Glazed)

Quartz crucible & lid

Catalogue Number	External Dimensions		Nom. Cap.(ml)
	Height H(mm)	Diameter D(mm)
TQ/LFC/15	25	41	15
TQ/LFC/25	28	47	25
TQ/LFC/50	37	57	50
TQLFC/80	45	67	80
TQ/LFC/150	51	82	150

Crucible Caking Index with LID (B.S. 705) Translucent(Glazed)

white quartz coking crucible

Catalogue Number	External Dimensions
	Height H(mm)	Diameter D(mm)
TQ/CC/LID	42	42.5

Tall Form Crucibles and LID Translucent(Glazed)

Quartz crucible tall form

Catalogue Number	External Dimensions		Nom. Cap.(ml)
	Height H(mm)	Diameter D(mm)
TQ/TFC/20	38	35	20
TQ/TFC/30	39	43	30
TQ/TFC/50	51	51	50

Boats Combustion with Handle Translucent(Glazed)

Quartz combustion boats/ Quartz sample boats

Catalogue Number	External Dimensions		Nom. Cap.(ml)
	Height H(mm)	Diameter D(mm)
TQ/BC/1	49	15	9
TQ/BC/2	77	12	10
TQ/BC/3	77	17	11
TQ/BC/4	77	20	12
TQ/BC/5	103	20	12

Muffle trays Translucent Glazed

Quartz muffle tray

Catalogue Number	Nominal Length L (mm)	No. of Holes
TQ/MT/2	39	2
TQ/MT/4	76	4

Retort Tubes for Gray King Apparatus Transparent

Quartz Retort tube

Cat. Number	Bore of Main tube D1 (mm)	Bore of Side Tube	Overall length L (mm)
TQ/GKA/LTA/1	21	8	300

Tall Form Beakers with Spout Translucent

Quartz Beaker Translucent

Catalogue Number	External Dimensions		Nom. Cap.(ml)
	Height H(mm)	Diameter D(mm)
TQ/TF/B/25	54	31	25
TQ/TF/B/50	70	42	50
TQ/TF/B/100	80	49	100
TQ/TF/B/150	87	56	150
TQ/TF/B/250	106	64	250

Wide Form Beakers with Spout Translucent

Quartz Beaker translucent wide form

Catalogue Number	External Dimensions		Nom. Cap.(ml)
	Height H(mm)	Diameter D(mm)
TQ/WF/B/50	55	44	50
TQ/WF/B/100	70	52	100
TQ/WF/B/150	82	59	150
TQ/WF/B/250	88	68	250

Rectangular Beakers with Spout Translucent

Quartz rectangular beaker translucent

Catalogue Number	External Dimensions			Nom. Cap.(ml)
	Height H(mm)	Width W(mm)	Length L(mm)
TQ/RC/10	12	28	60	10
TQ/RC/20	12	39	68	20
TQ/RC/30	18	42	52	25

Triangles on Nichrome Wire

Silicaware

Catalogue Number	Nominal Length of side L (mm)	Nominal Diameter of inscribed circle D(mm)
TQ/T/1	38	20
TQ/T/2	44	24
TQ/T/3	50	28
TQ/T/4	58	32
